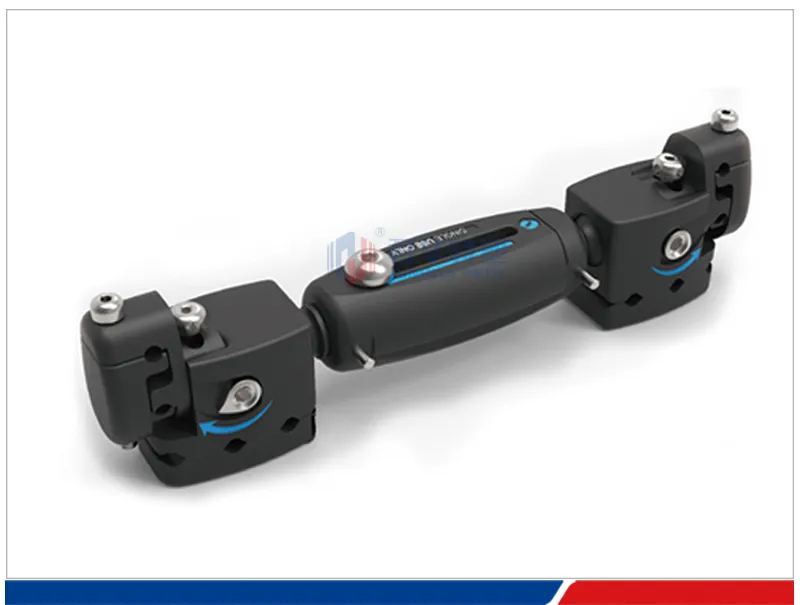

Fijador externo combinado PEEK transparente a los rayos X

PEEK material is used to completely replace metal to make a combined external fixator with only 20 metal parts, which greatly reduces the weight of the product. X-ray transparency and simple molding process are two major characteristics of polymer special engineering plastics that are superior to alloy materials. Other excellent characteristics include: excellent chemical stability suitable for various disinfection methods, high mechanical strength to meet the use requirements, moderate surface hardness to bring a new feel, and the unique gentleness of the material is closer to the patient than metal.

●Molding method: injection molding, machining;

● Material grade: PEEK5600CF30 (30% carbon fiber reinforced);

●Processing procedures: CNC processing, precision carving, screen printing, heat treatment, assembly;

●Clinical application forms: X-ray transparent tibial support, annular combination support, light-transmitting ankle support;

●Characteristics and advantages: light weight, simple operation, various three-dimensional fixing forms, easy molding;

●Combined components: adjustable slider 1, adjustable slider 2, clamping seat, fixed seat, pressure plate, clamping block, ball head, three types of root bone connecting rods, medical stainless steel.
